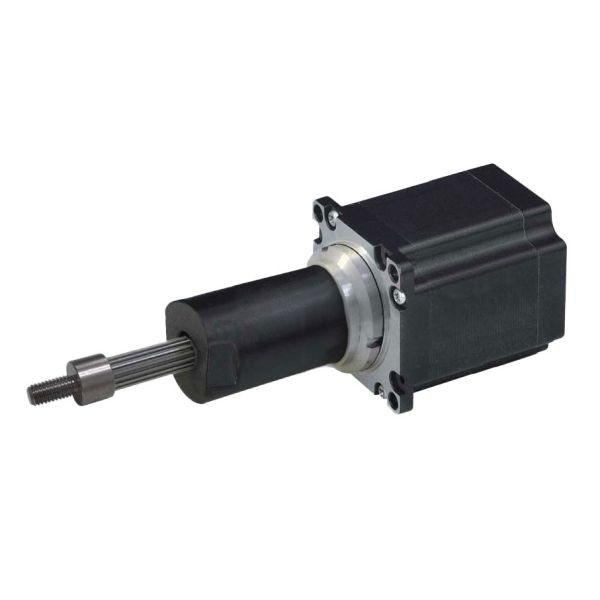

    57LHS Series Double Stack Four Wires 990N Force 2 Phase Nema23 Captive Hybrid linear Stepper Motors Linear Acuators

    1. Products Overview

    2. Hybrid Stepper Motor Naming Rules and General Technical Specifications
    Linear stepper motor naming rules,


    General Specifications,

    Step Angle1.8° (2 Phase)
    Step Angle Accuracy±0.09°
    SizeNema23, 57mm
    Insulation Grade500VDC, 20 MΩ Min. ,Class B
    Dielectric Strengt500 VAC for 1 Minute
    Temperature RiseLess than 80℃ (Rated Current)
    Suface TemperatureMax.Allowed 100℃
    Humidity Range20% to 90% RH
    IP GradeIP40
    CertificatesRohs, CE, CCC


    3. 20LHS0494/0244/0164 Captive Type Hybrid Linear Stepper Motor Performance Datasheet

    Model NameWiring

    Rated Voltage

    Rated

    Current

    Resistance /phase

    Inductance

    /phase

    Power ConsumptionTemp. RiseWeight

    Insulation

    Resistance

    57LHS3324

    Bipolar

    3.25V3.32A0.98Ω1.33mH14W75℃352g20MΩ
    57LHS2164

    5V

    2.16A

    2.31Ω6.6mH
    57LHS0904

    12V

    0.9A

    13.33Ω45.1mH


    Note: Customization of motor specifications available.
    Available leadscrew specifications,

    CodeLeadscrew Thread Dimensions in mm
    diametersteplead
    Aφ9.530.00793751.5875
    Tφ9.530.0211664.22
    Sφ9.530.0105842.1168
    3φ9.530.01272.54
    1φ9.530.02545.08
    2φ9.530.050810.16


    4. Mechanical Dimensions (in mm)

    Captive Type Mechanical Drawings as bellow,


    Note: Above A,B available customization information as bellow,

    Distance CodeDistance (mm)A (mm)B (mm)
    30212.720.471.68
    30319.126.828.03
    30425.433.1714.38
    30531.839.5220.73
    30638.145.8727.08
    30750.858.5739.78


    5. Force and Pulse Rate Curves


    6. Wirings
